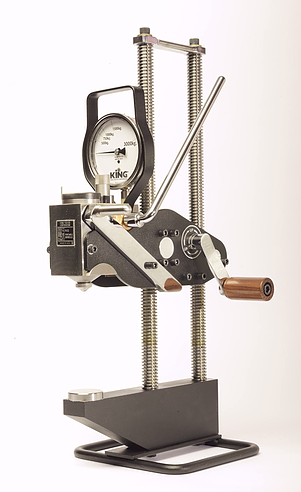

King Brinell Hardness Tester

King Brinell is one of the most versatile portable hardness tester that provides consistent and accurate of Brinell Hardness result for on-site testing because of its high load (3000kg) and large indentation. The tester is lightweight, easy to maneuver and versatile enough to test virtually any size and shape of metal specimen. The tester can apply up to a 3,000 kg load on a 10mm ball, making the required impression, which is available for re-reading at any time.

These testers are easy to use where the operator simply places the specimen between the anvil and the test head, cranks the test head down onto the specimen, locking the tester in place, closes the pressure release valve, and pulls the hydraulic lever until desired load is reached. The impression is read and recorded and then the result is generated by referring to the table.

Advantages of King Brinell Hardness Tester:

  • Can be used for greater loads up to 3, 000 kg.
  • Versatile for any position, sizes and shapes
  • High Durability
  • Impression can be checked and rechecked at any time
  • Applicable for most of Steel material above 10mm thickness.
